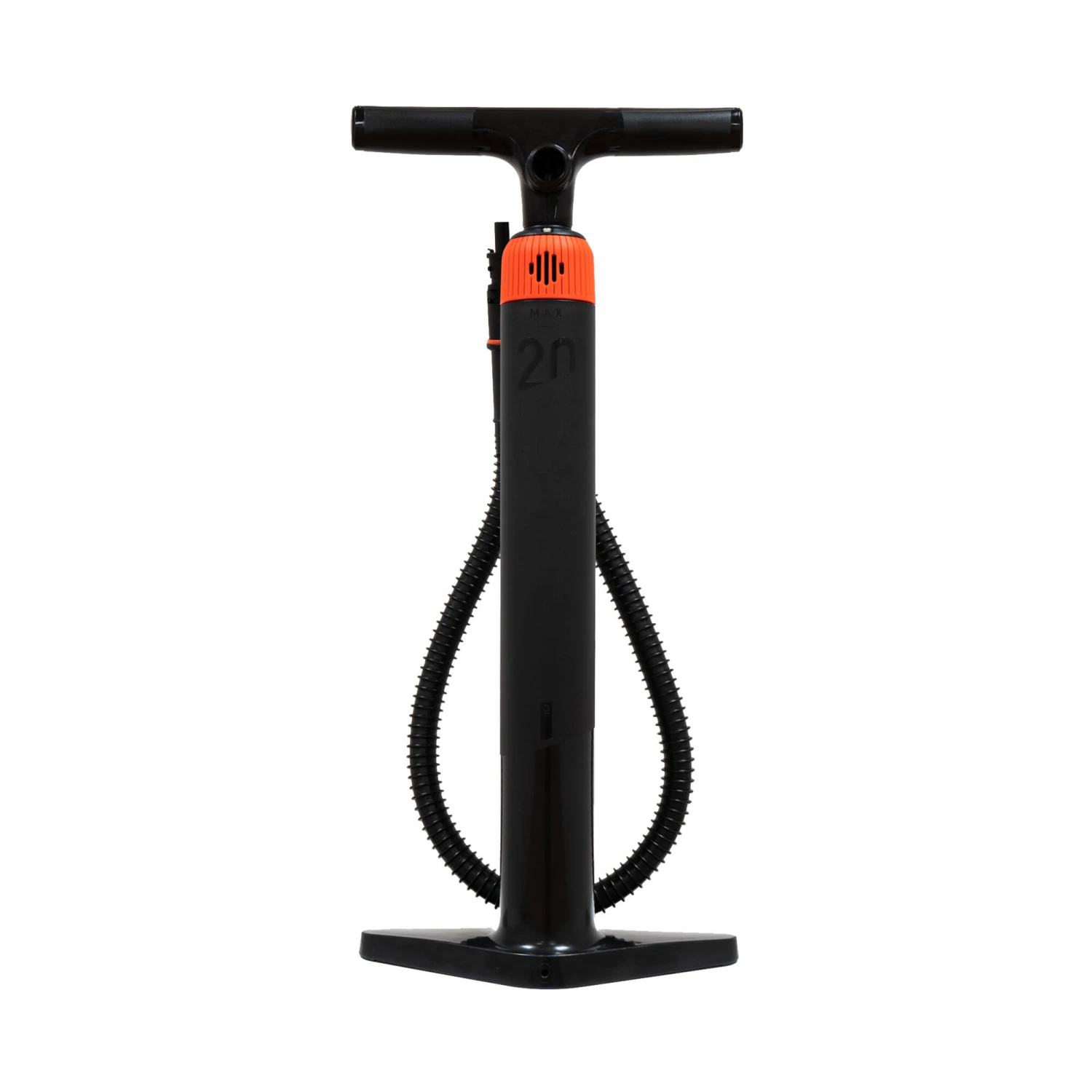

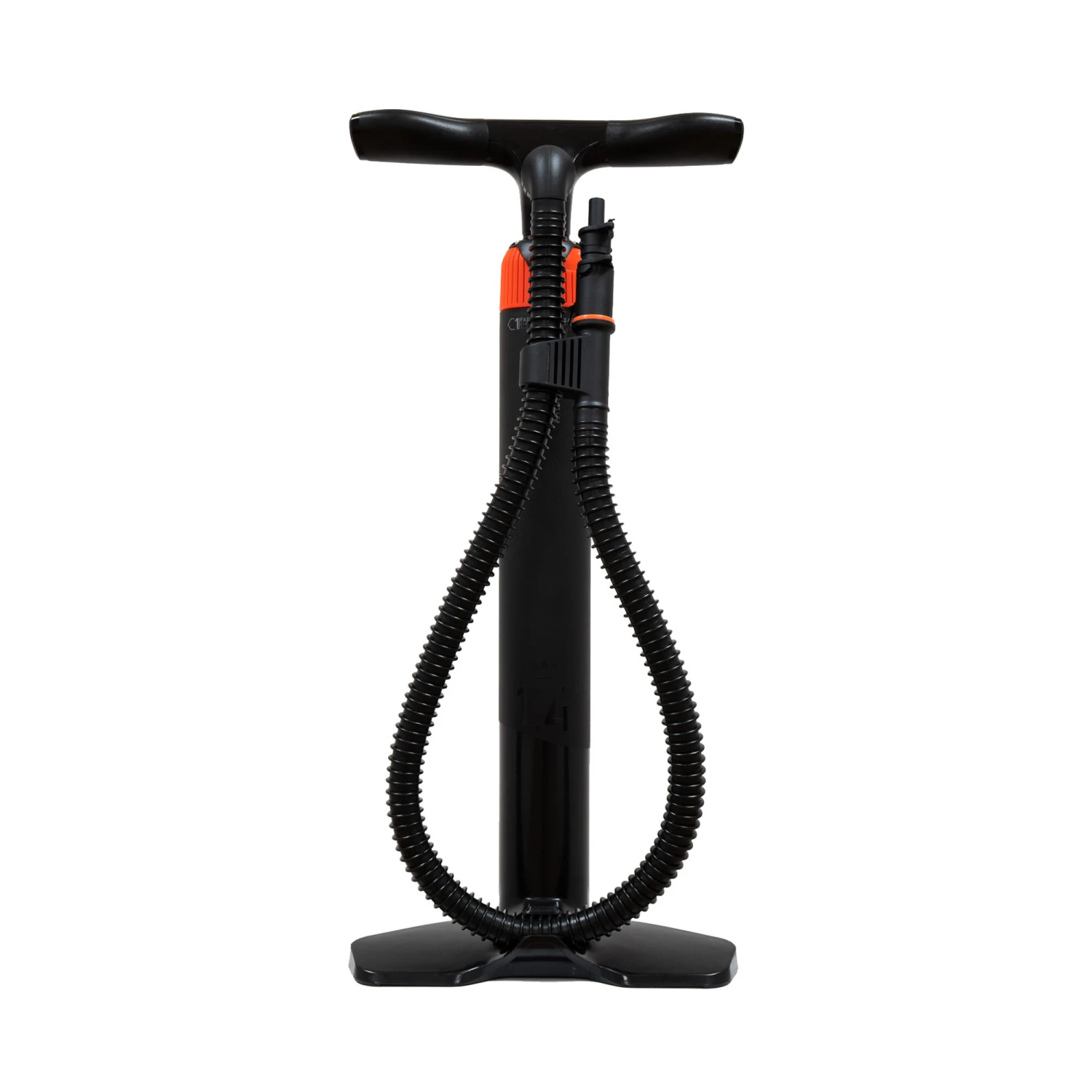

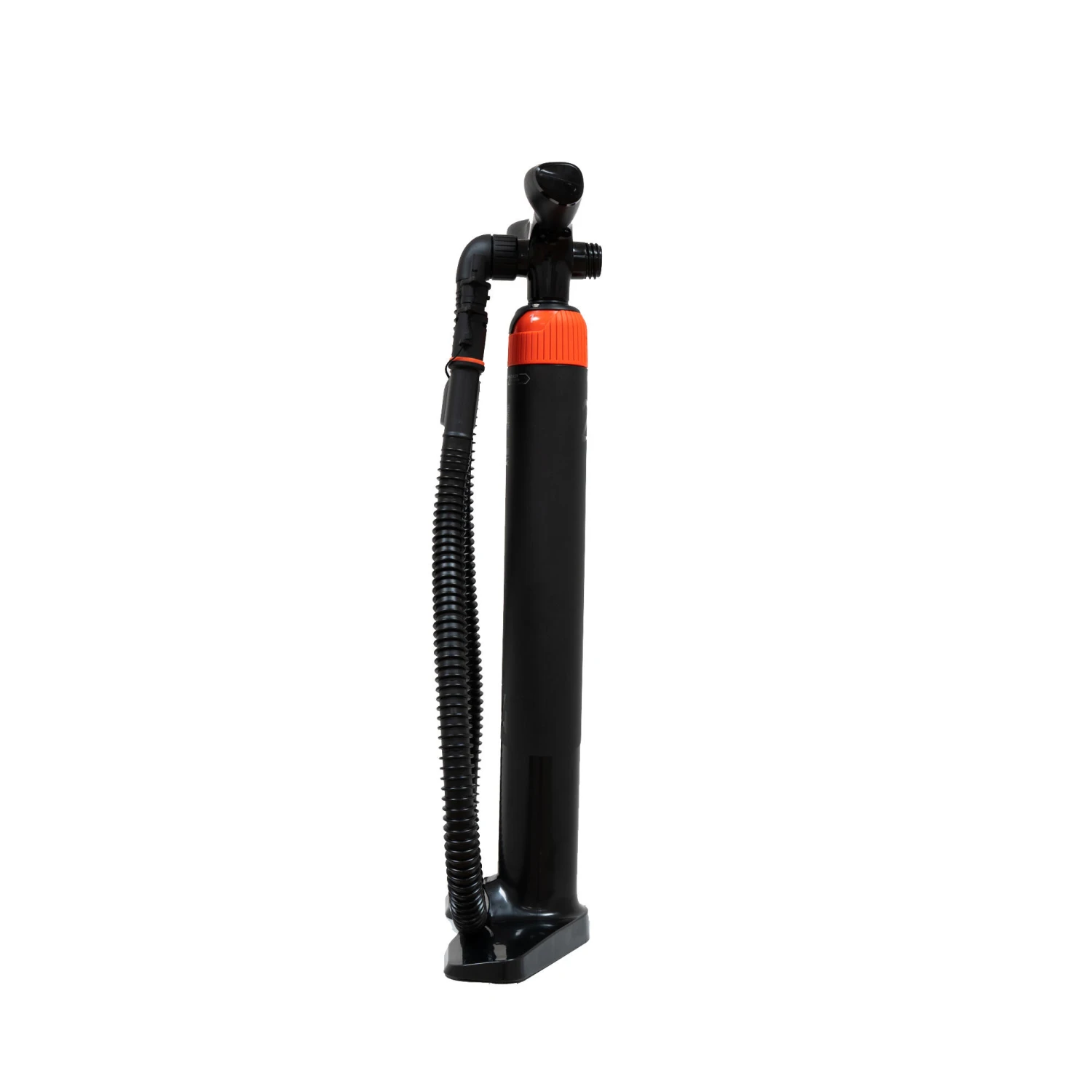

STAND-UP PADDLE AND KAYAK DOUBLE ACTION HIGH-PRESSURE EASY PUMP 20 PSI

Our team has refined the diameter of the piston to reduce the force needed for inflation. 15 psi with this pump is equivalent to 11 psi with a classic pump.The double-action high-pressure pump is designed to easily inflate SUPs or kayaks to pressures of up to 20 PSI. DEFLATE mode can also be used to optimise the storage of the inflatable

Directions for use

1/ Stand on level and solid ground
2/ Check that the hose is attached on the INFLATE side
3/ Connect the hose to the inflatable

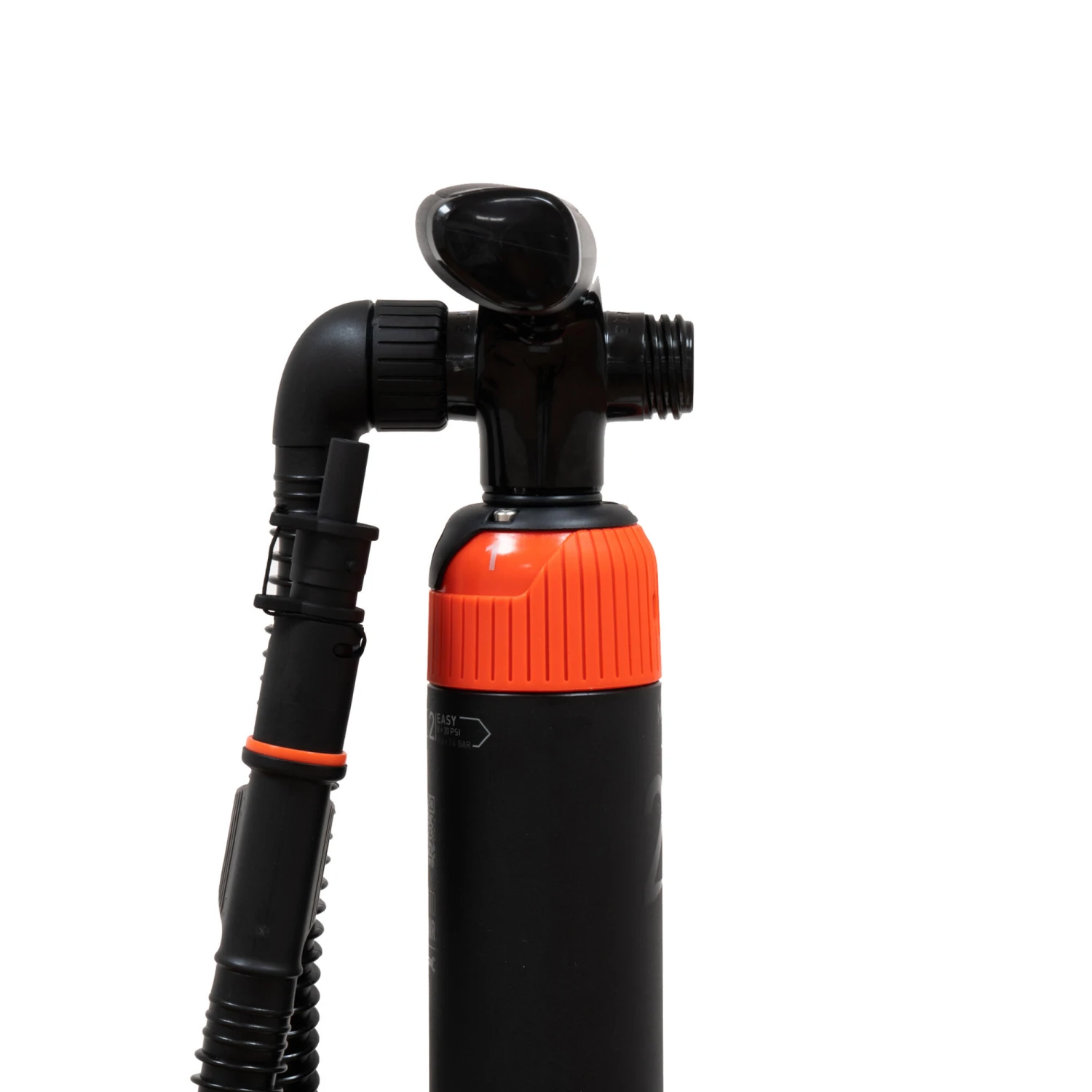

4/ Turn the orange ring to position 1
5/ Inflate the craft until it becomes difficult (approx. 8 PSI)
6/ Turn the orange ring to position 2
7/ Finish inflating to the recommended pressure.

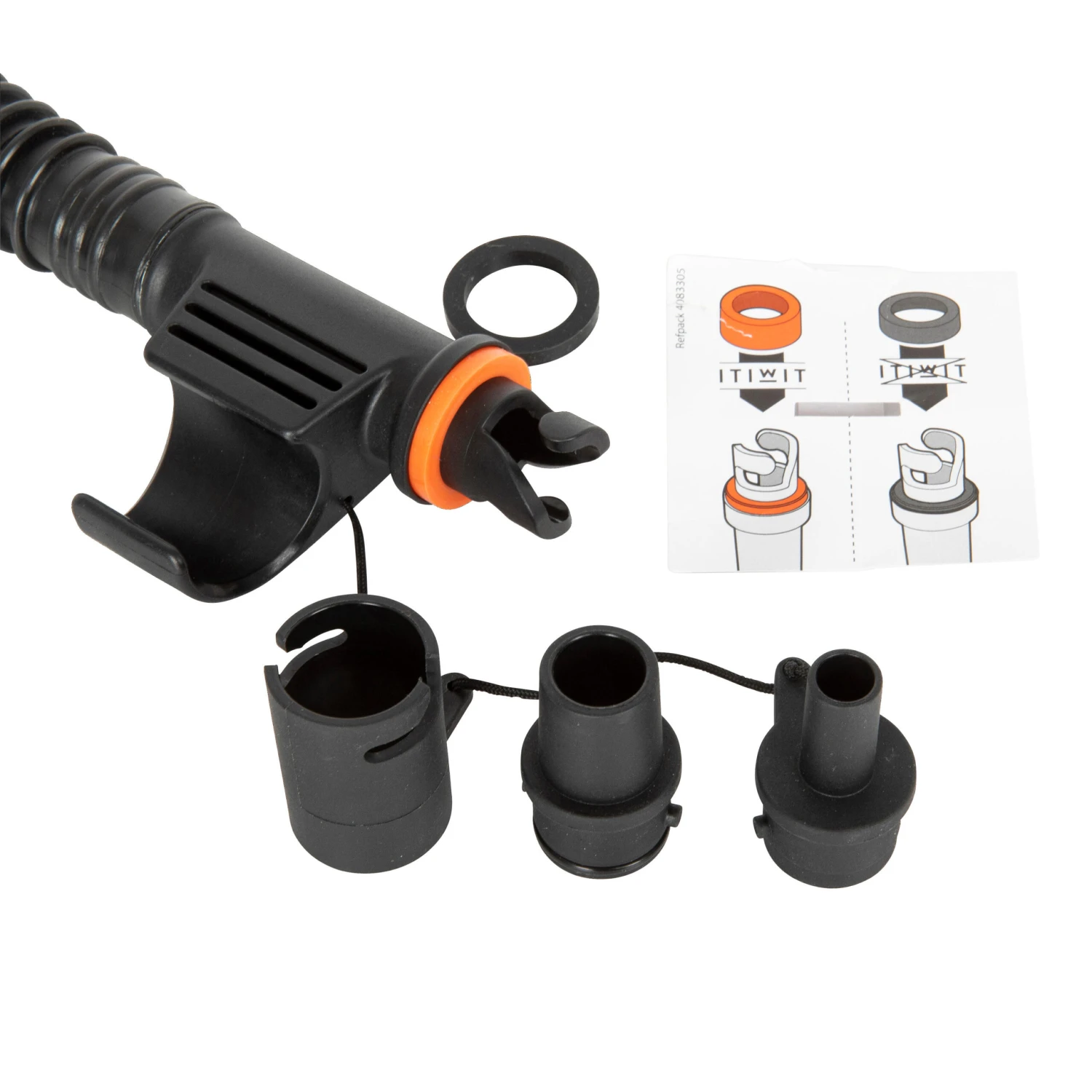

Pump supplied with 2 seals on the inflation nozzle to fit most valves on the market. (orange: ITIWIT / black: other)

Storage instructions

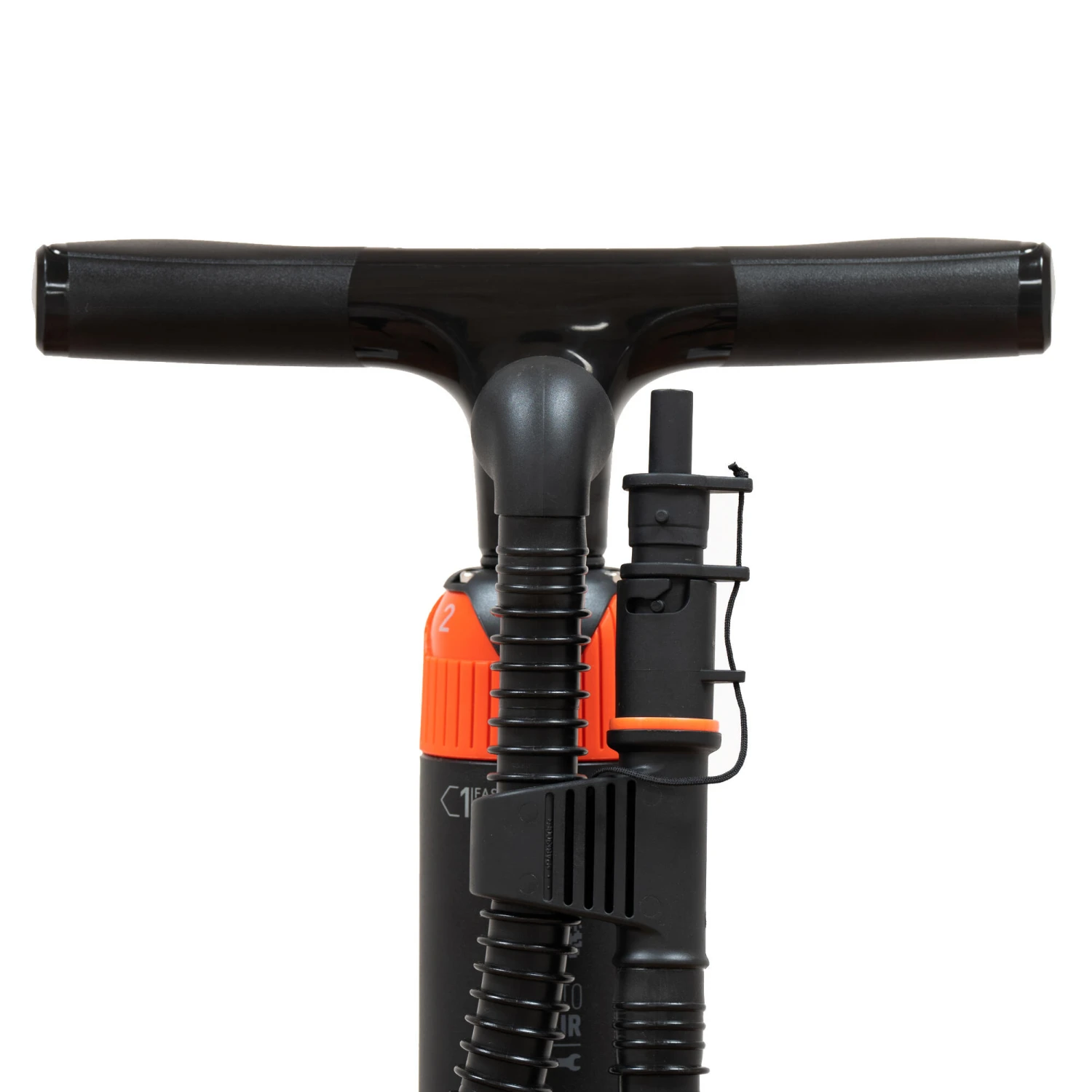

Use the two fastening clips to attach the hose and pump together.
Do not stand on the pump or the hose.
Clean off any sand, it can damage the seals.

Technical dimensions

Height: 60 cm
Width: 27 cm
Depth: 12 cm
Hose length: 100 cm

60 mm diameter piston for easy high-pressure inflation. Easy to inflate for everyone.

Pump weight: 1.2 kg

Volume of air transferred:
Mode 1: 2.1 litres
Mode 2: 1.2 litres

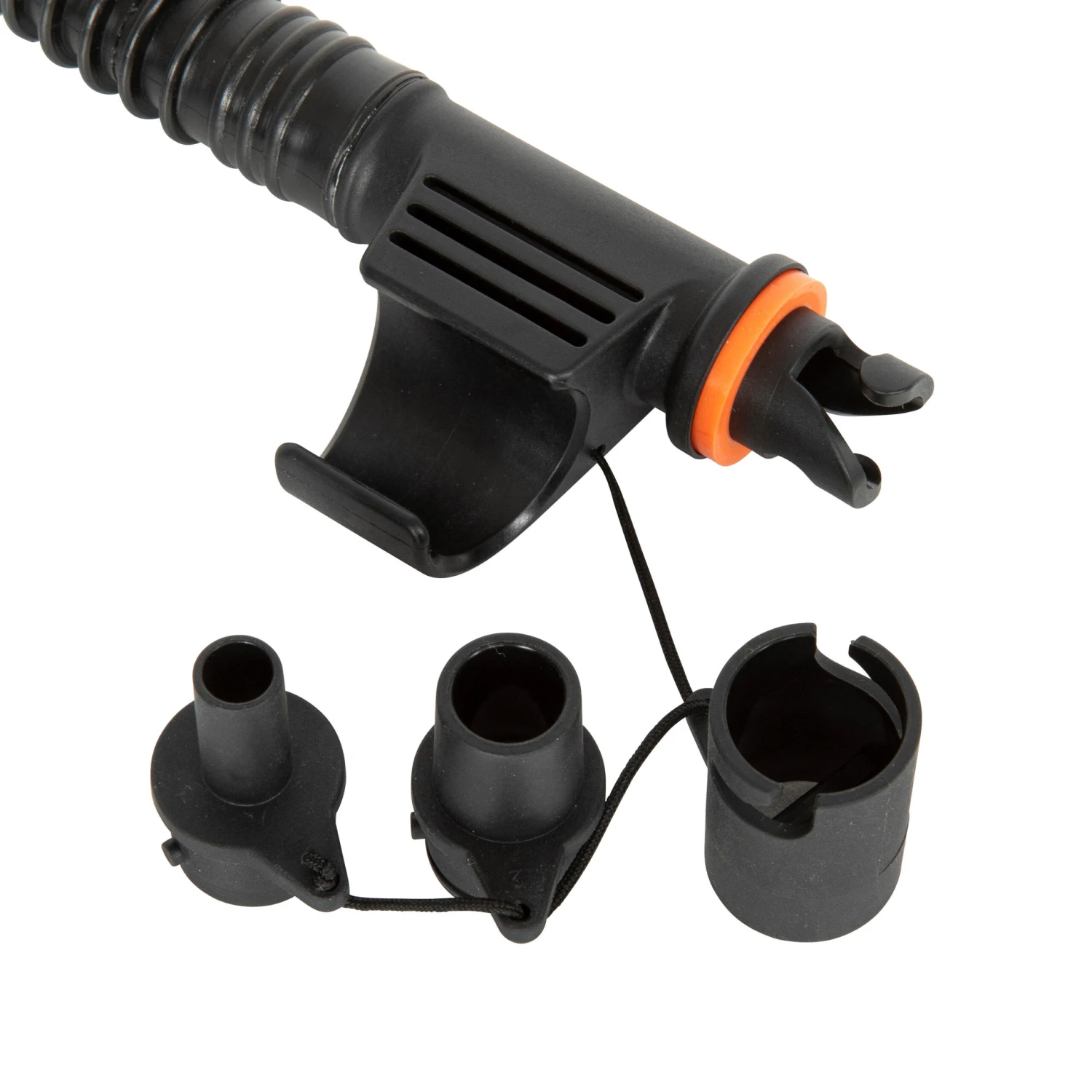

Sold with a set of adapters

In addition to its standard adapter to inflate your dropstitch SUP or kayak to high pressure, the pump also comes with:
A “Mini Boston” adapter to inflate the kayak seats
a “Boston” adapter to inflate low-pressure kayaks, inflatable air mattresses and tents.
An adapter and end piece to inflate certain kitesurfing wings.

Repair

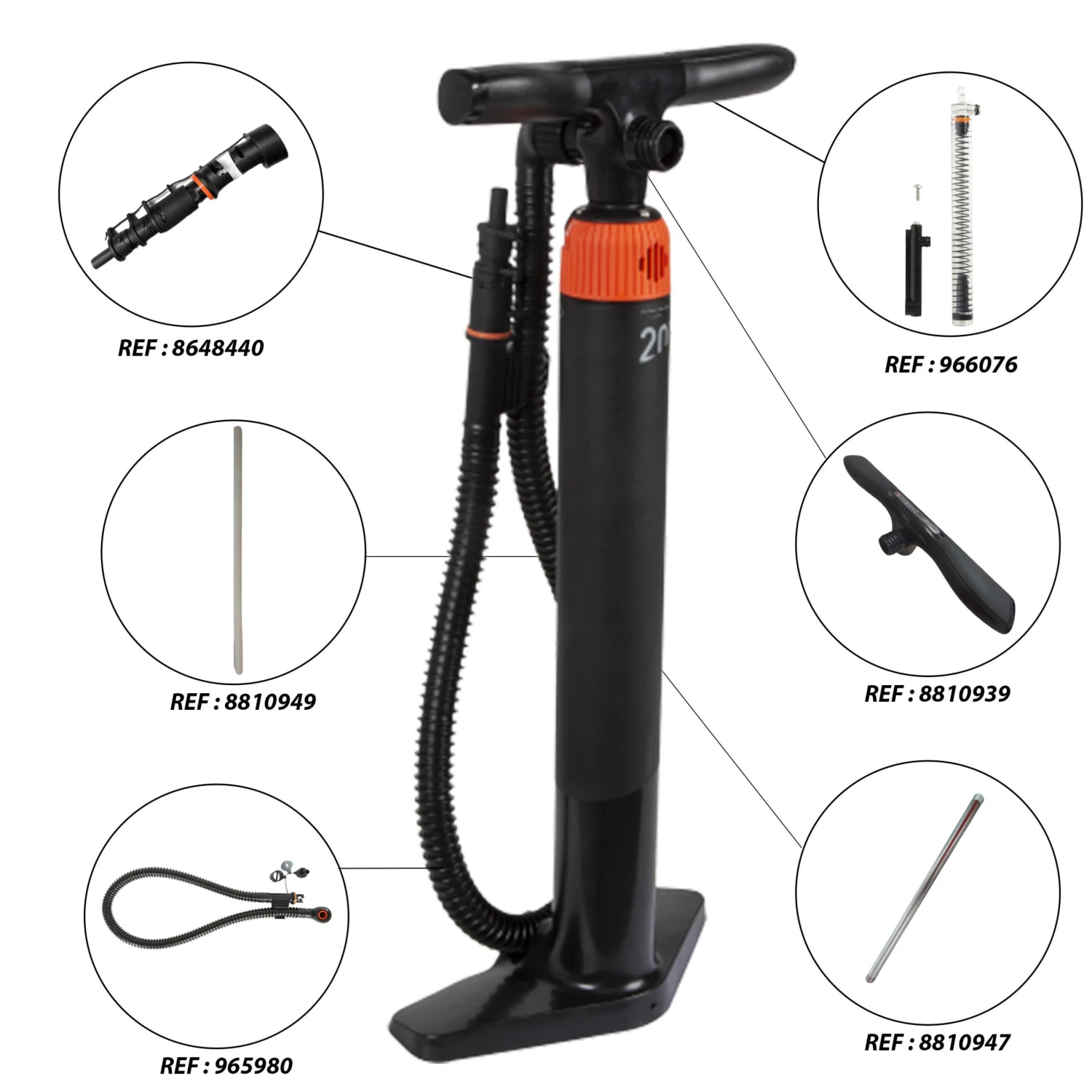

We design our products so that they are as repairable as possible. The following spare parts are available for this pump:

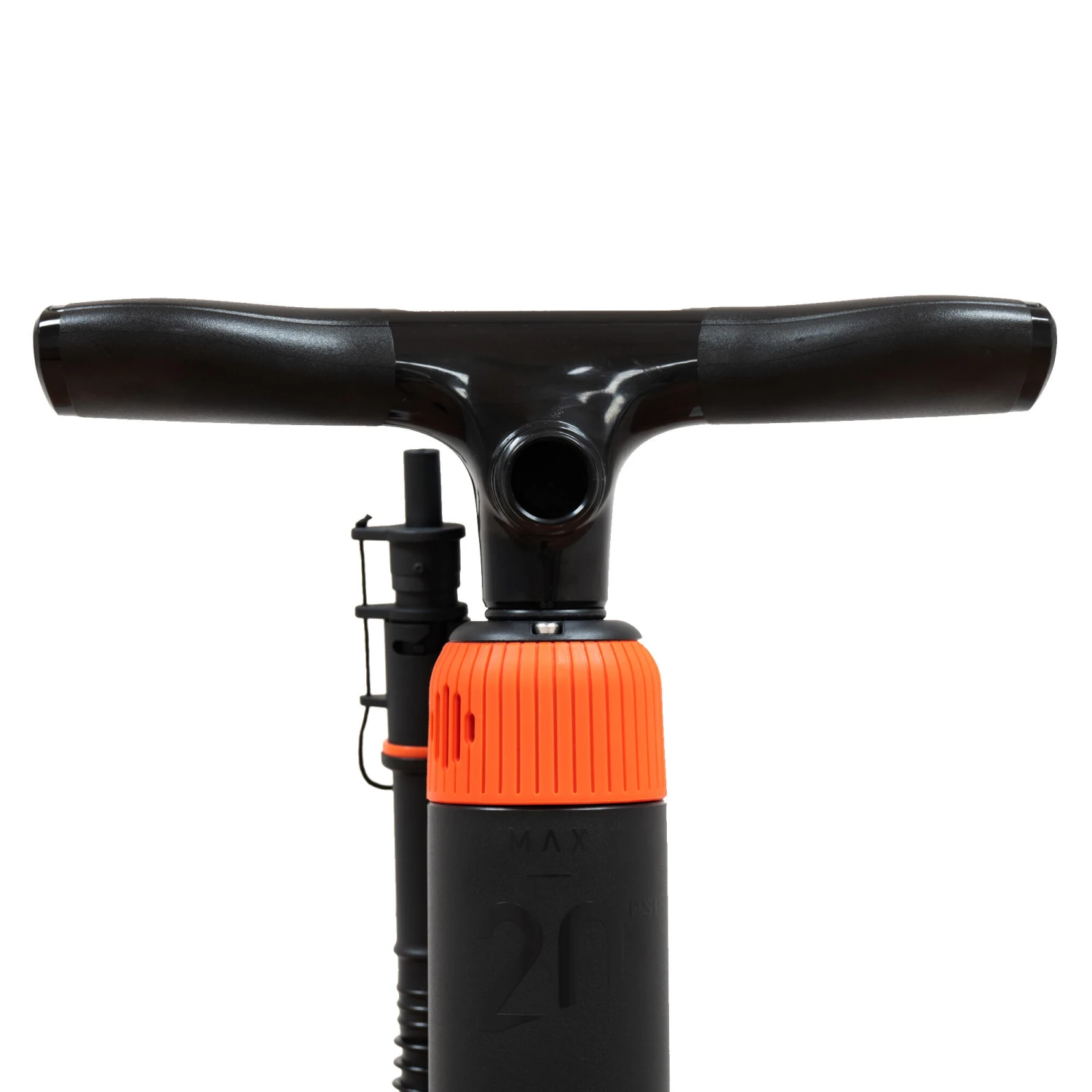

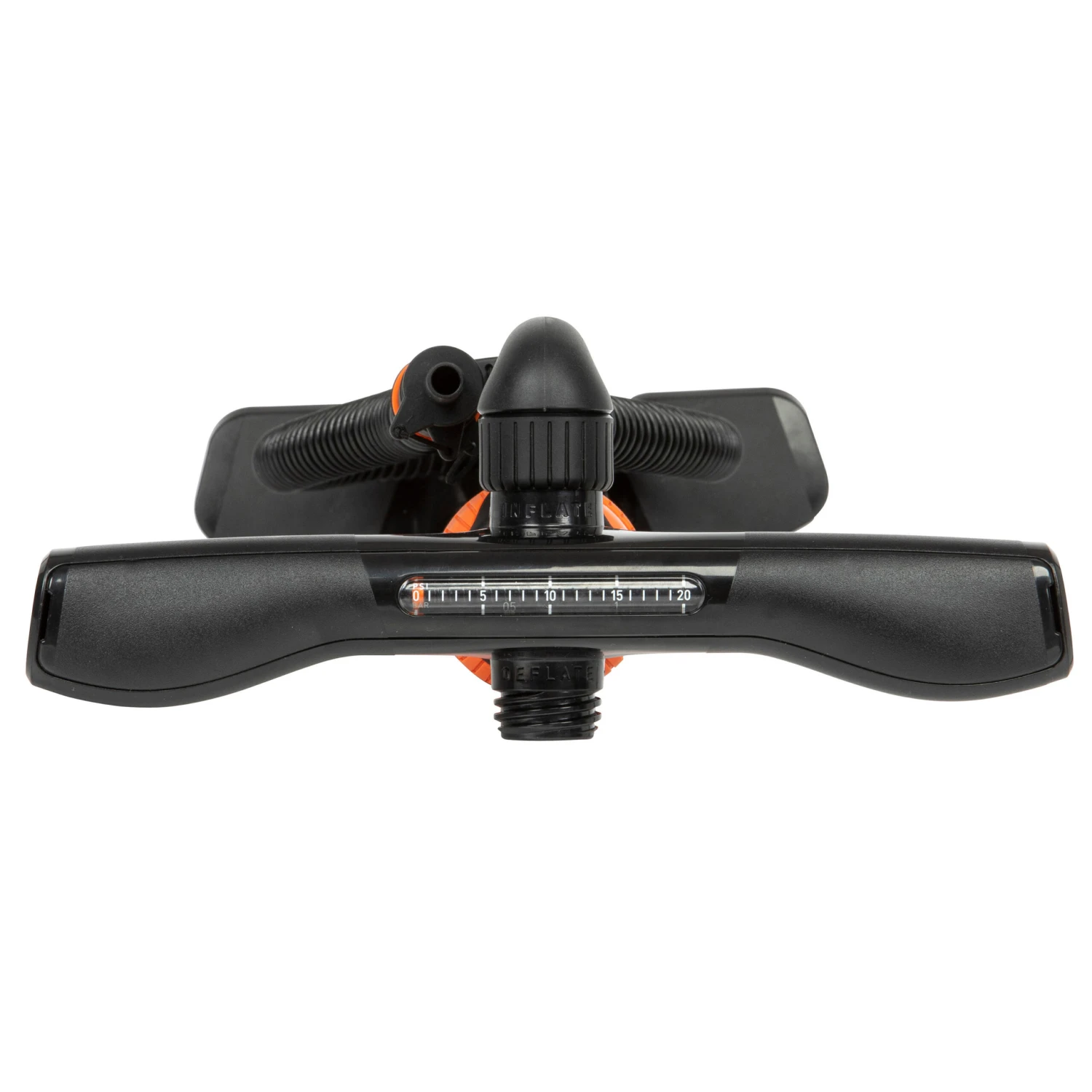

Handle + Pressure gauge: 8810939

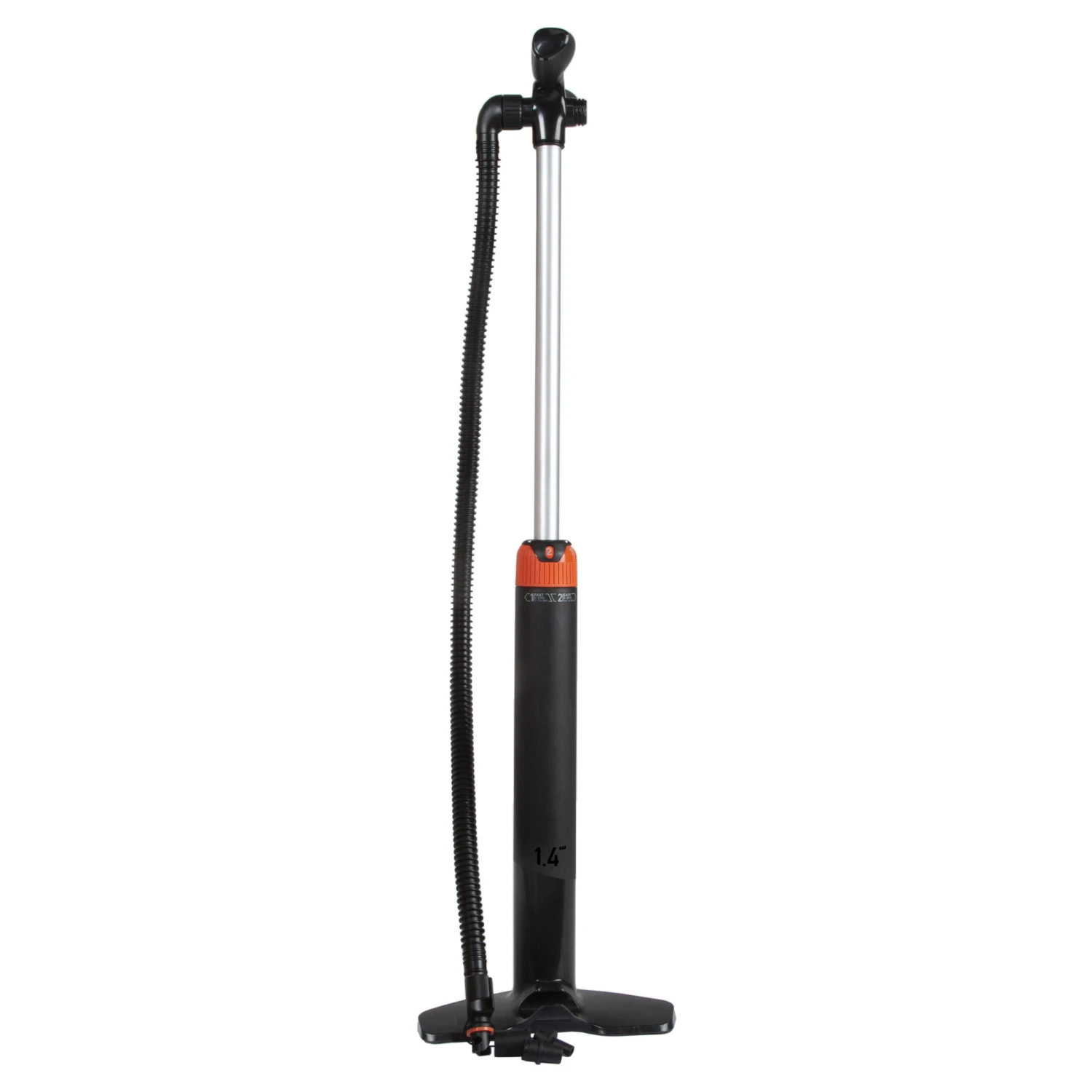

Aluminium tube: 8810947

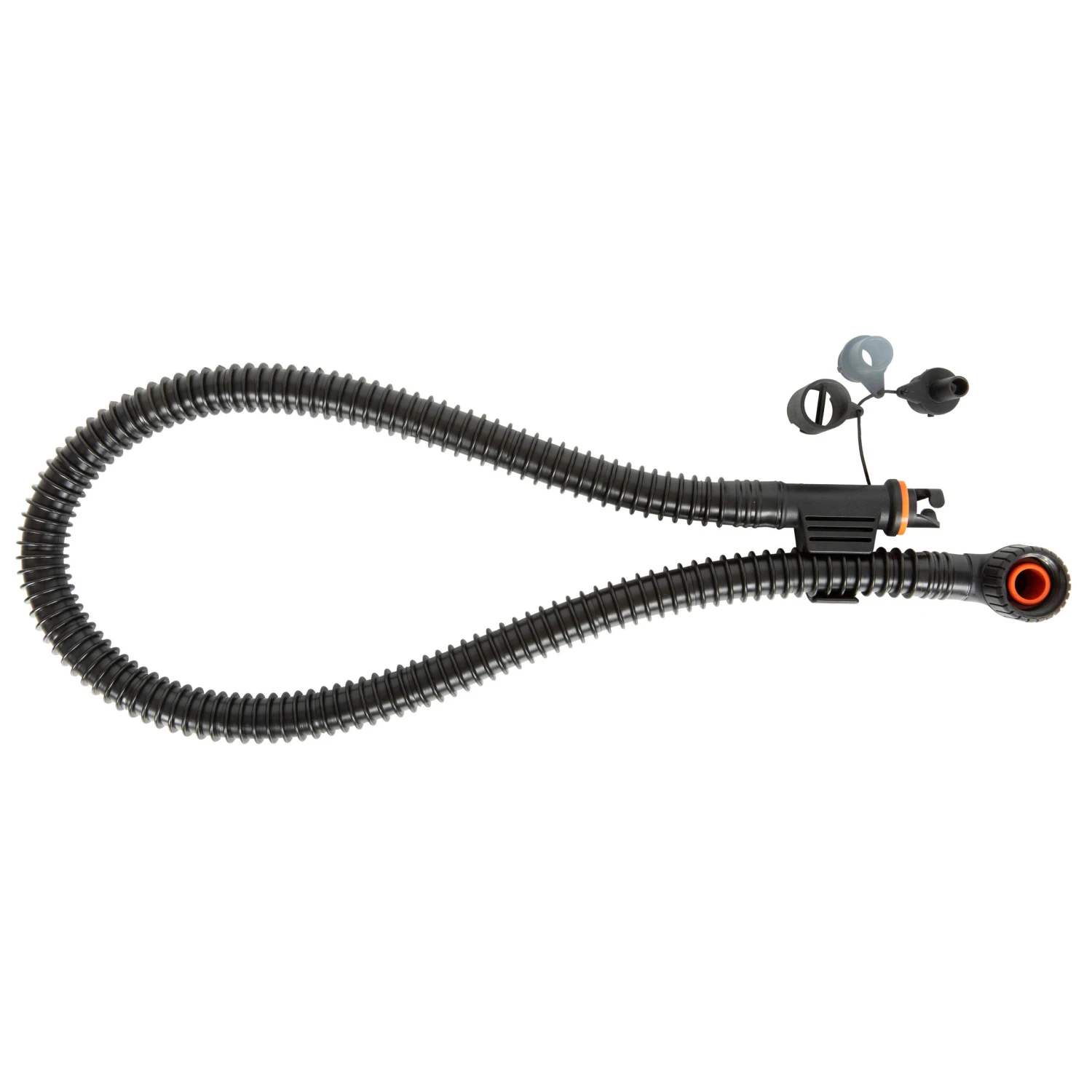

Hose: 8810949
