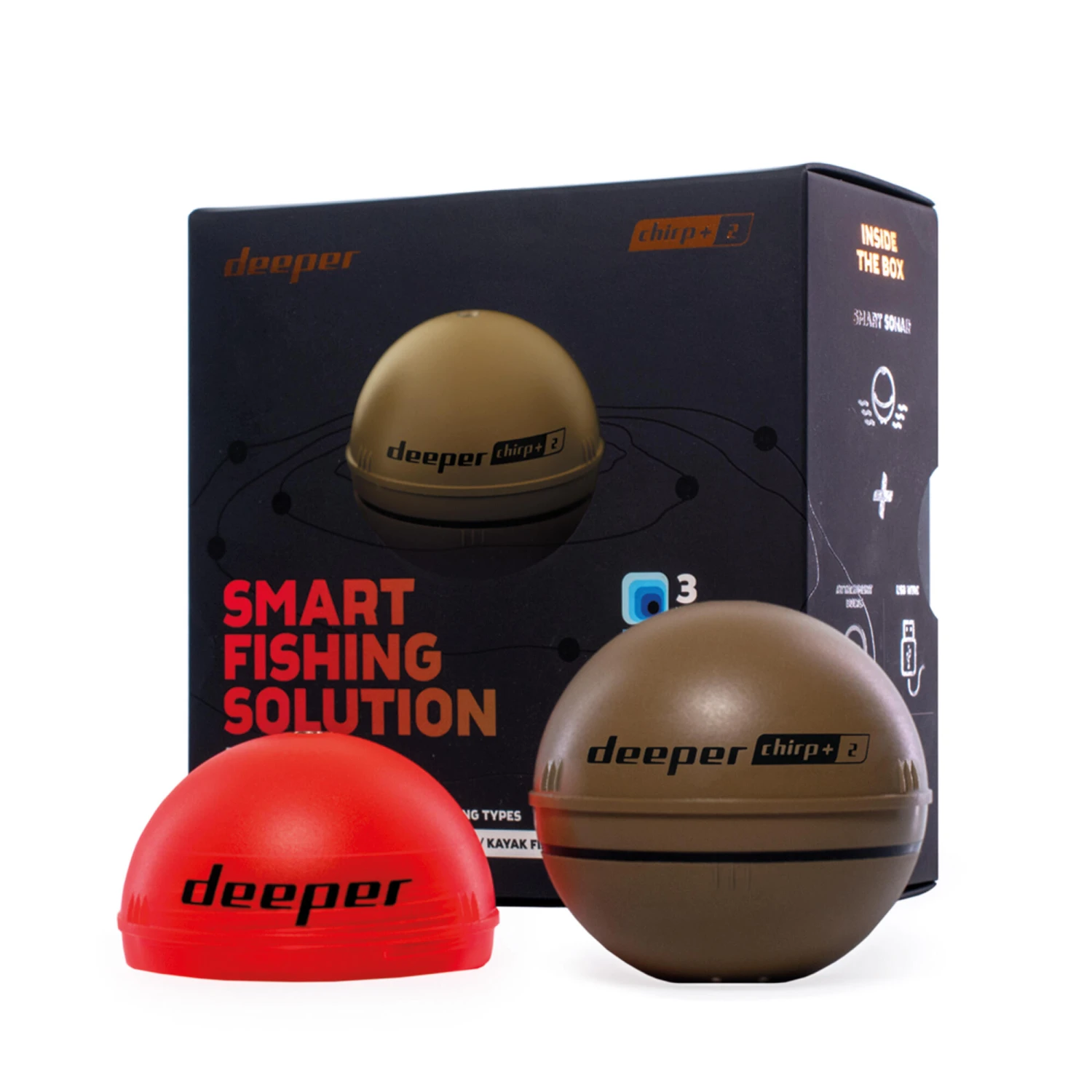

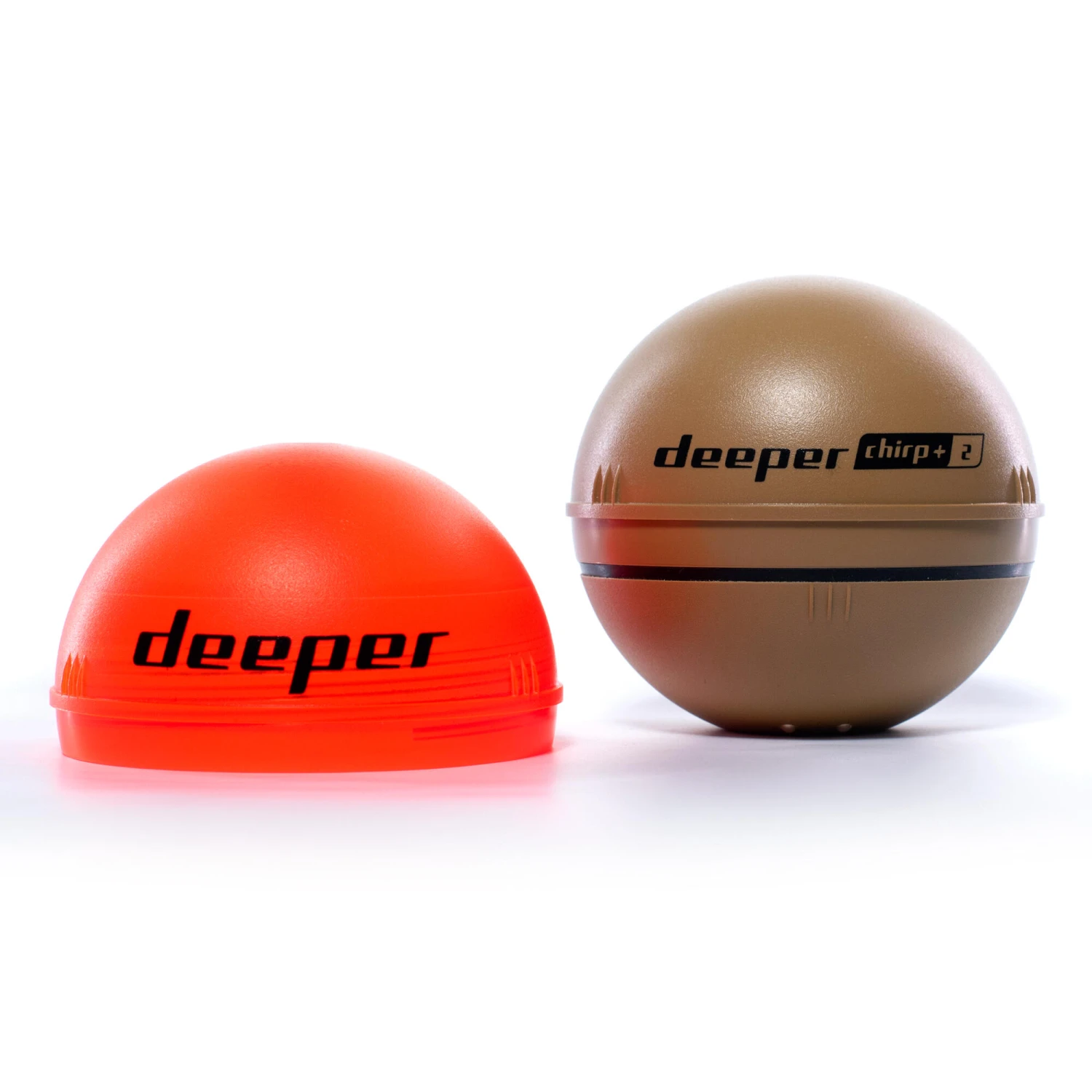

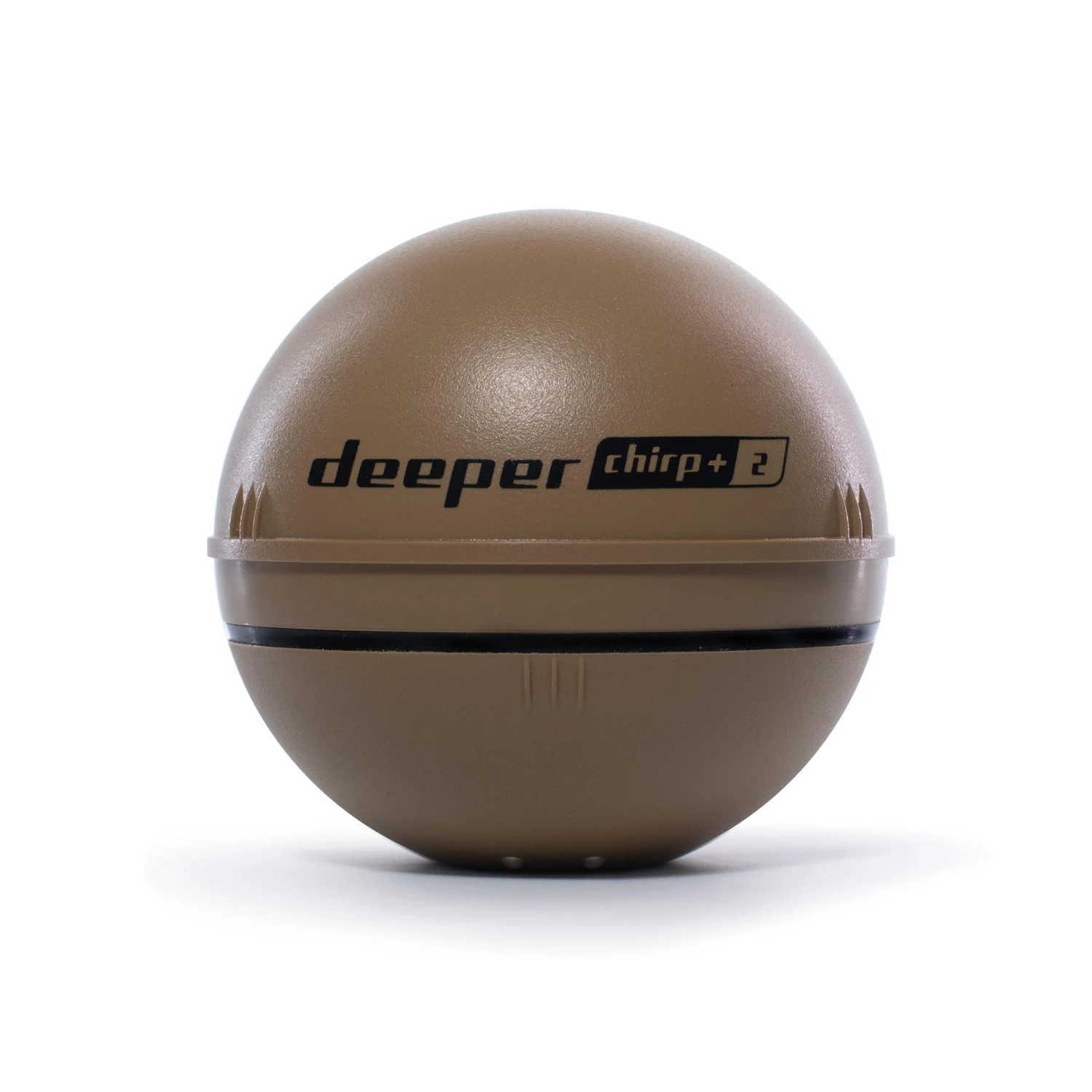

DEEPER CHIRP PLUS FISH FINDER

The Deeper CHIRP + is designed for anglers looking for a versatile and compact fish finder. From the shore or a boat, you’re in controlThe DEEPER CHIRP+ fish finder is designed to be used from the shore (with a rod) or a sea craft (kayak, float-tube, boat or paddle board). A fish finder suitable for many different kinds of fishing.

FEATURES

– CHIRP technology
– Quick charging: 80% in 45 minutes, 100% in 75 minutes. – 3 beam frequencies: 675 kHz, 290 kHz and 100 kHz
– Wi-Fi connection
– Integrated GPS
– Flawlessly detailed visuals let you distinguish fish, structure, bottom contour, and vegetation.
– Choose from 3 colour palettes on your smartphone
– Target separation of 1 cm
– Deep water precision
– Scanning depth: 100 m
– Casting range: up to 120 m
– Materials: ABS casing, titanium inserts

3-FREQUENCY SONAR

– Wide CHIRP 100 kHz (cone angle 47°)
Find target fish holding spots faster scanning with a 47° wide-angle beam.

– Medium CHIRP 290 kHz (cone angle 16°)
Use the 16° medium-angle beam to get a more precise view of an identified holding spot.

– Narrow CHIRP 675 kHz (cone angle 7°)
Focus on your target species with the 7° narrow-angle beam for even better detail.

CHIRP TECHNOLOGY

Traditional sonar sends out a single frequency pulse at a time. A CHIRP (Compressed High Intensity Radiated Pulse) sonar sends out a continuous flow of frequencies, ranging from low to high and because of this, the sonar readings are much clearer and have a higher resolution compared to traditional sonars. With CHIRP, surface clutter and noise are minimal, so you can expect precise sonar readings in very shallow water.

INSIDE THE BOX

– CHIRP+ sonar
– USB cable
– Neoprene pouch
– Attachment bolts x2
– Quick guide
– Safety and regulations
